Conveyor Frames & Brackets – Durable Industrial Material Handling Solution

Introduction

Conveyor frames and brackets are the backbone of any conveyor system. They provide structural support, stability, and alignment for conveyor rollers, belts, and idlers, ensuring smooth and efficient material handling. Available in 3-roller, 5-roller, laser-cut, and customized designs, these frames are suitable for a wide range of industries including manufacturing, packaging, logistics, and food processing.

Also referred to as troughing idler frames, customized conveyor frames, or laser-cut conveyor brackets, these components are essential for long-lasting and reliable conveyor operation.

Price

₹500 – ₹2500 (depending on design, size, and material)

Types of Conveyor Frames

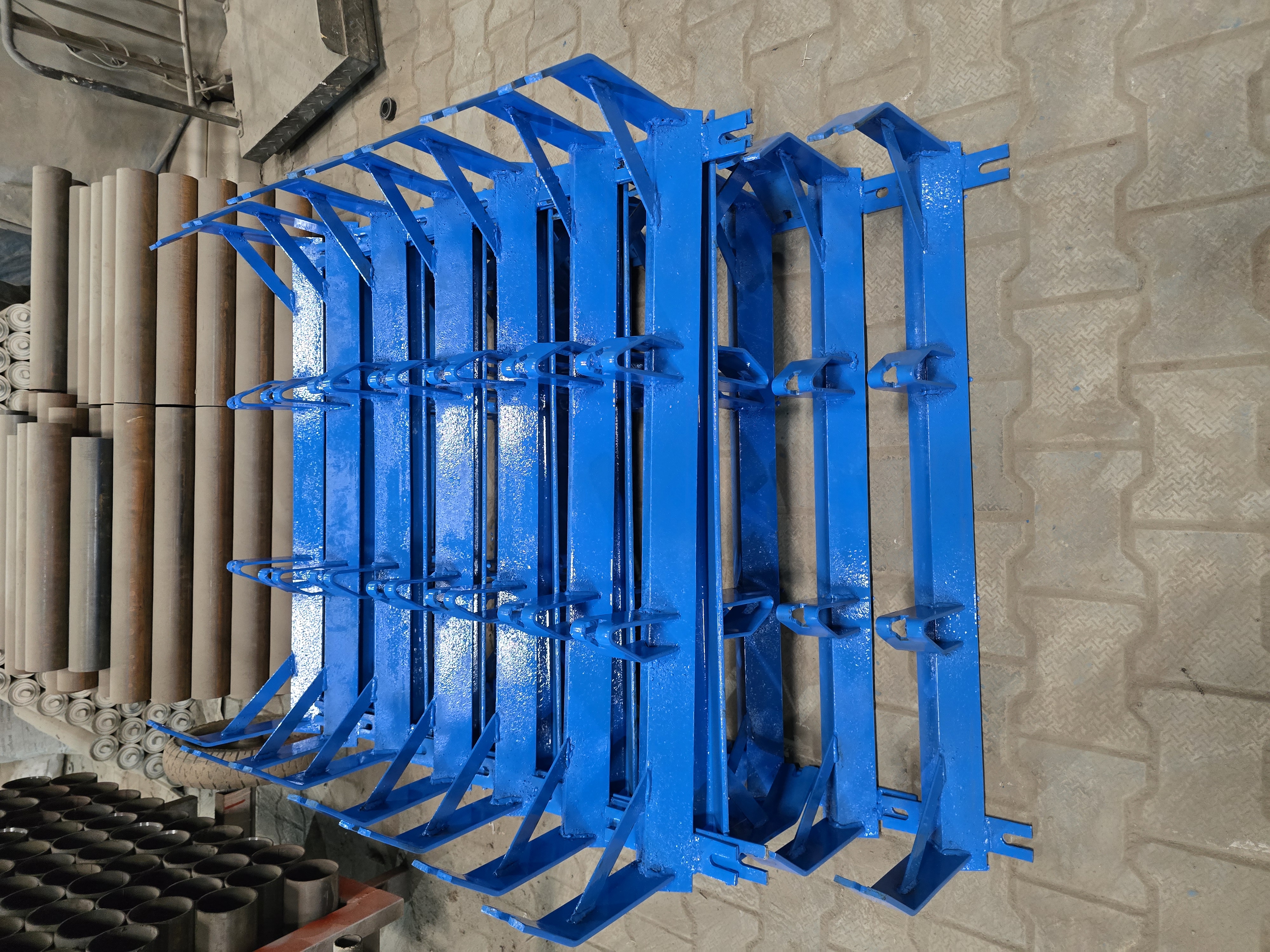

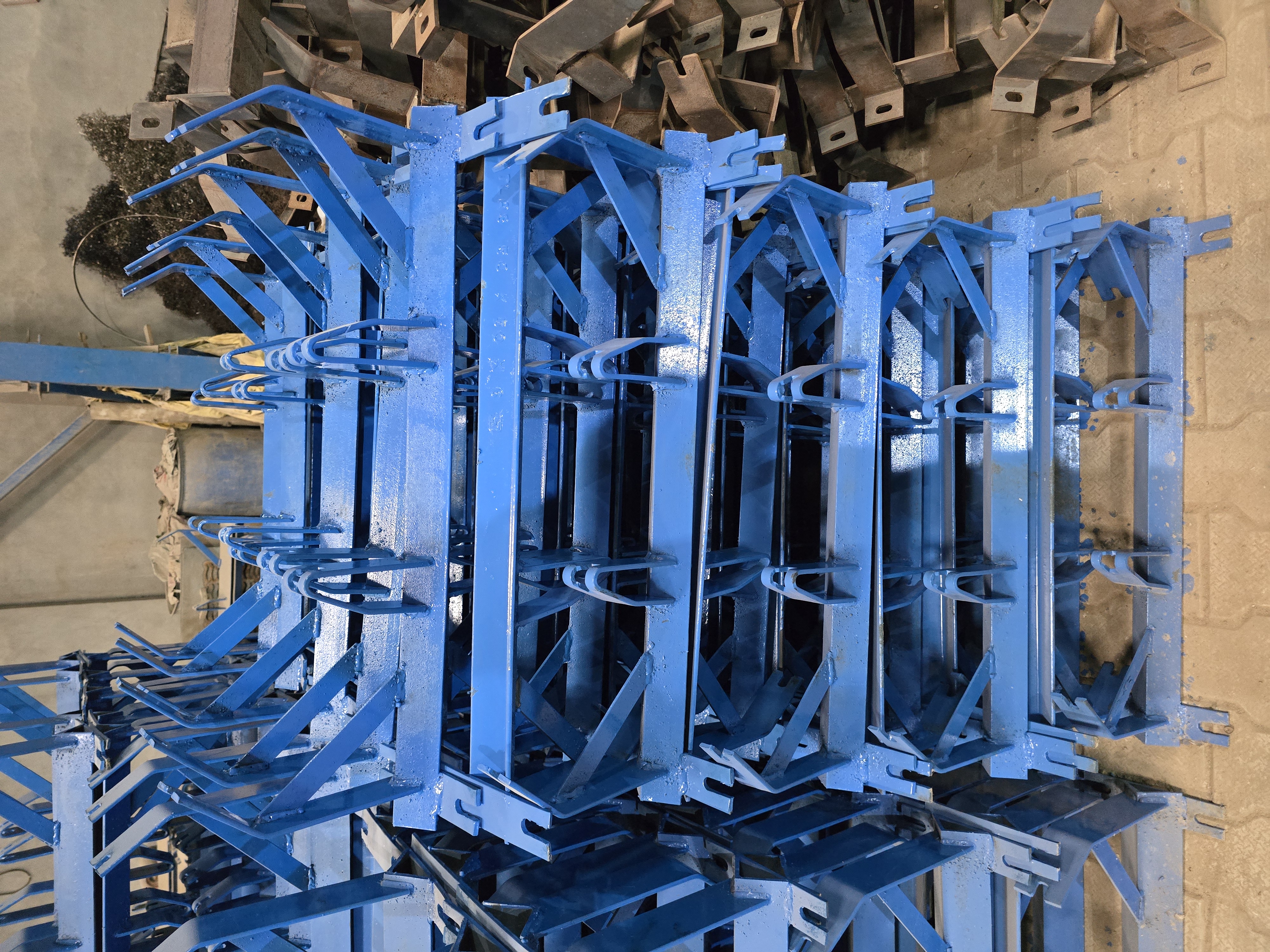

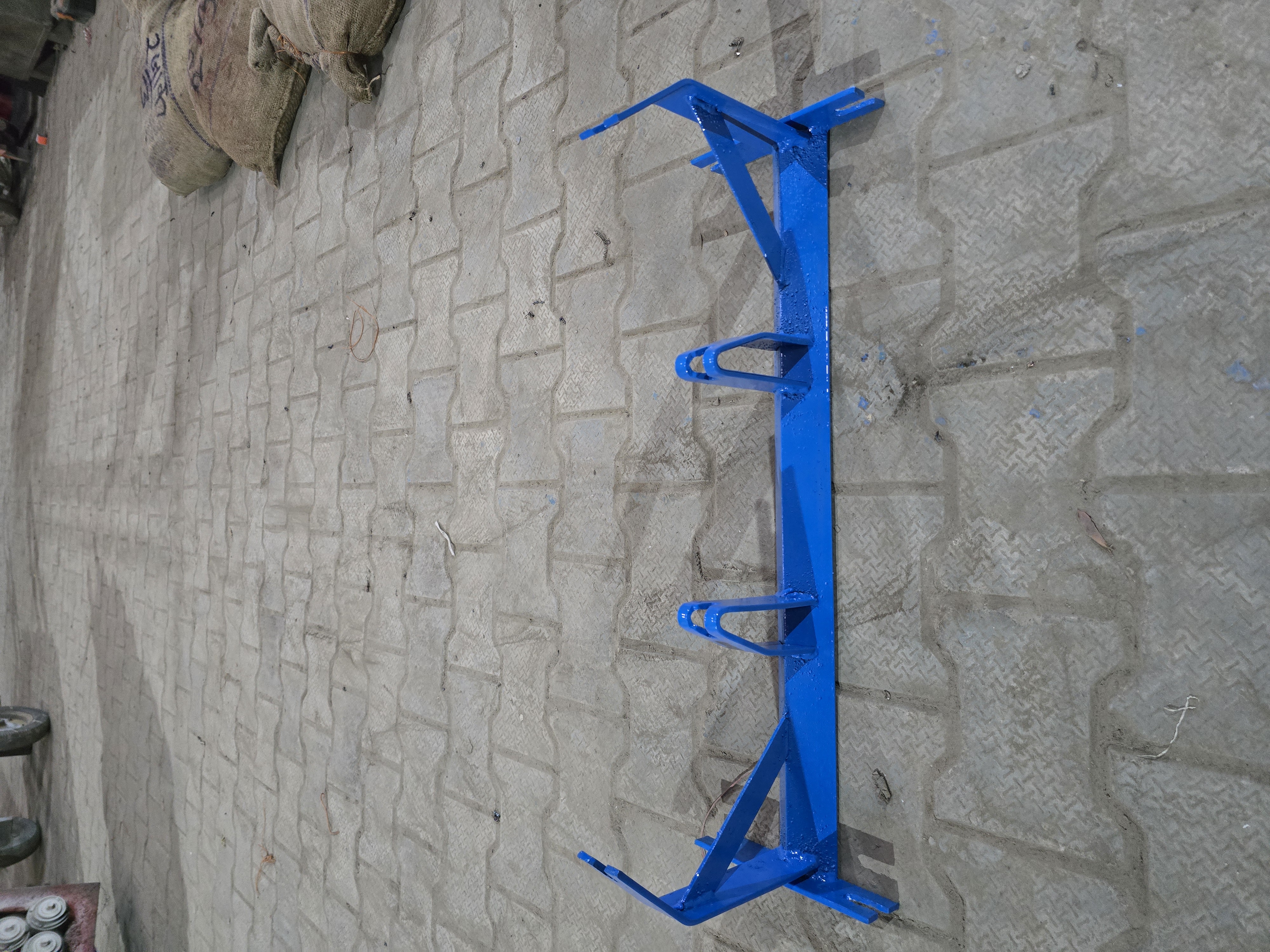

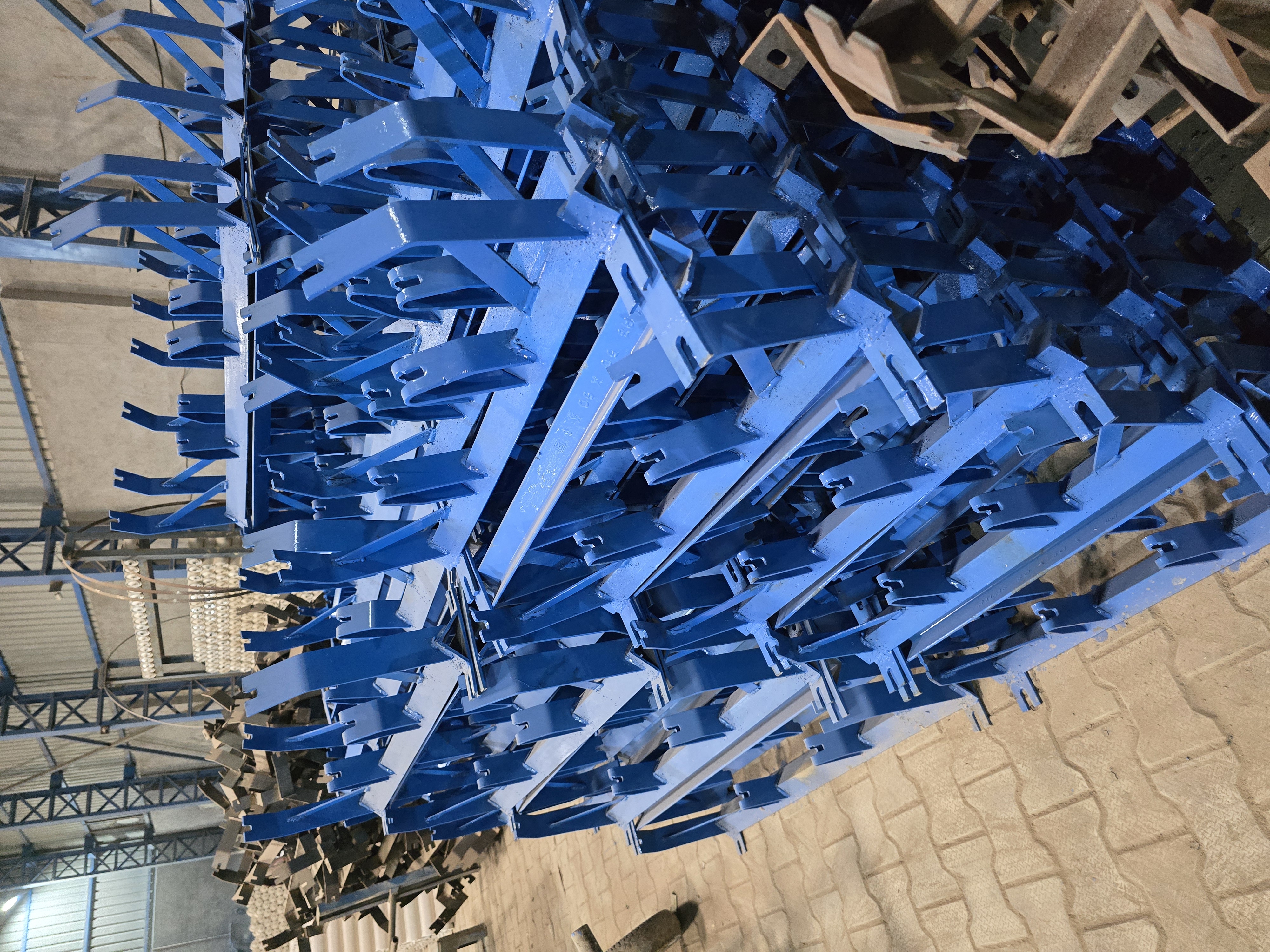

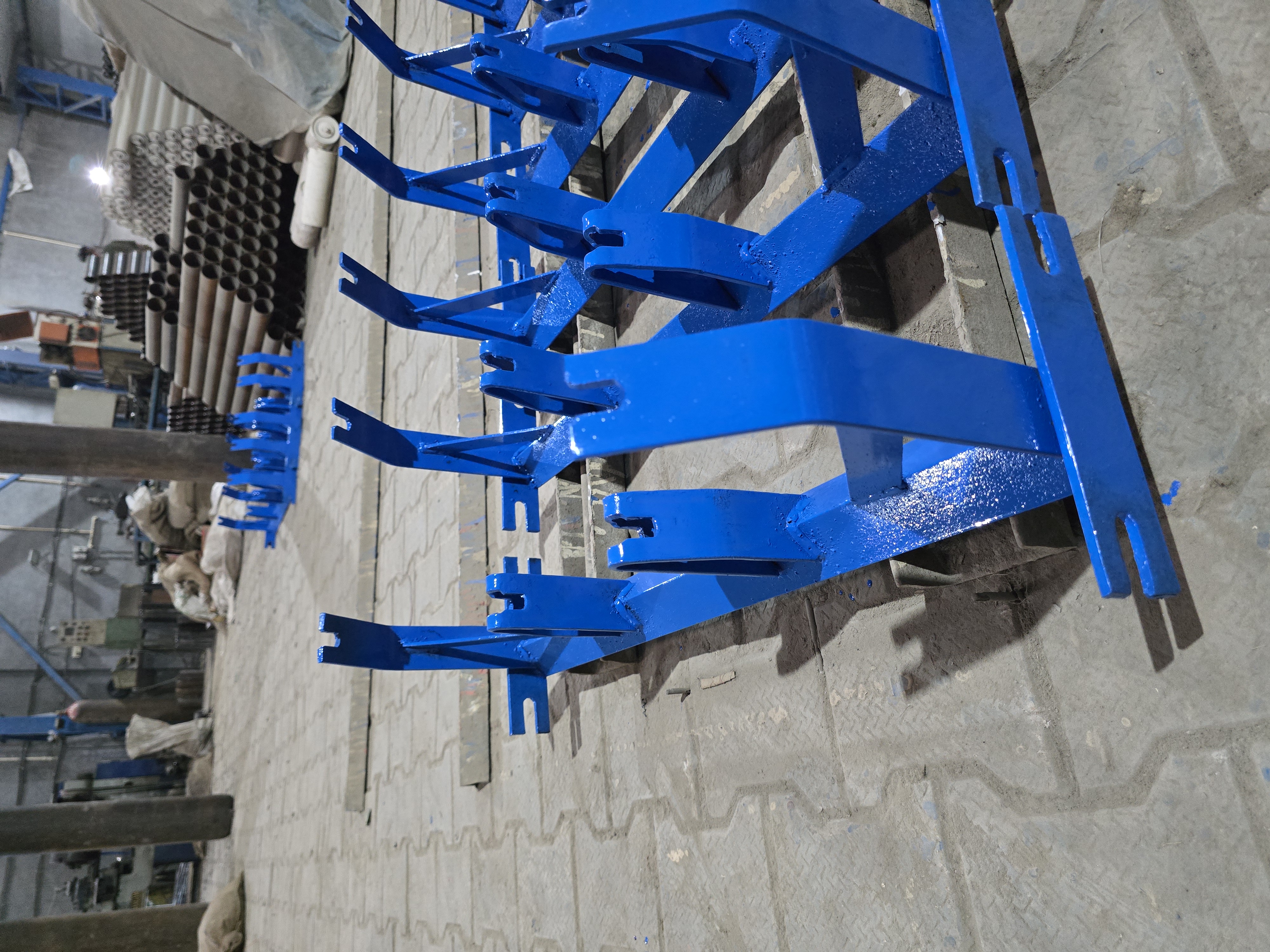

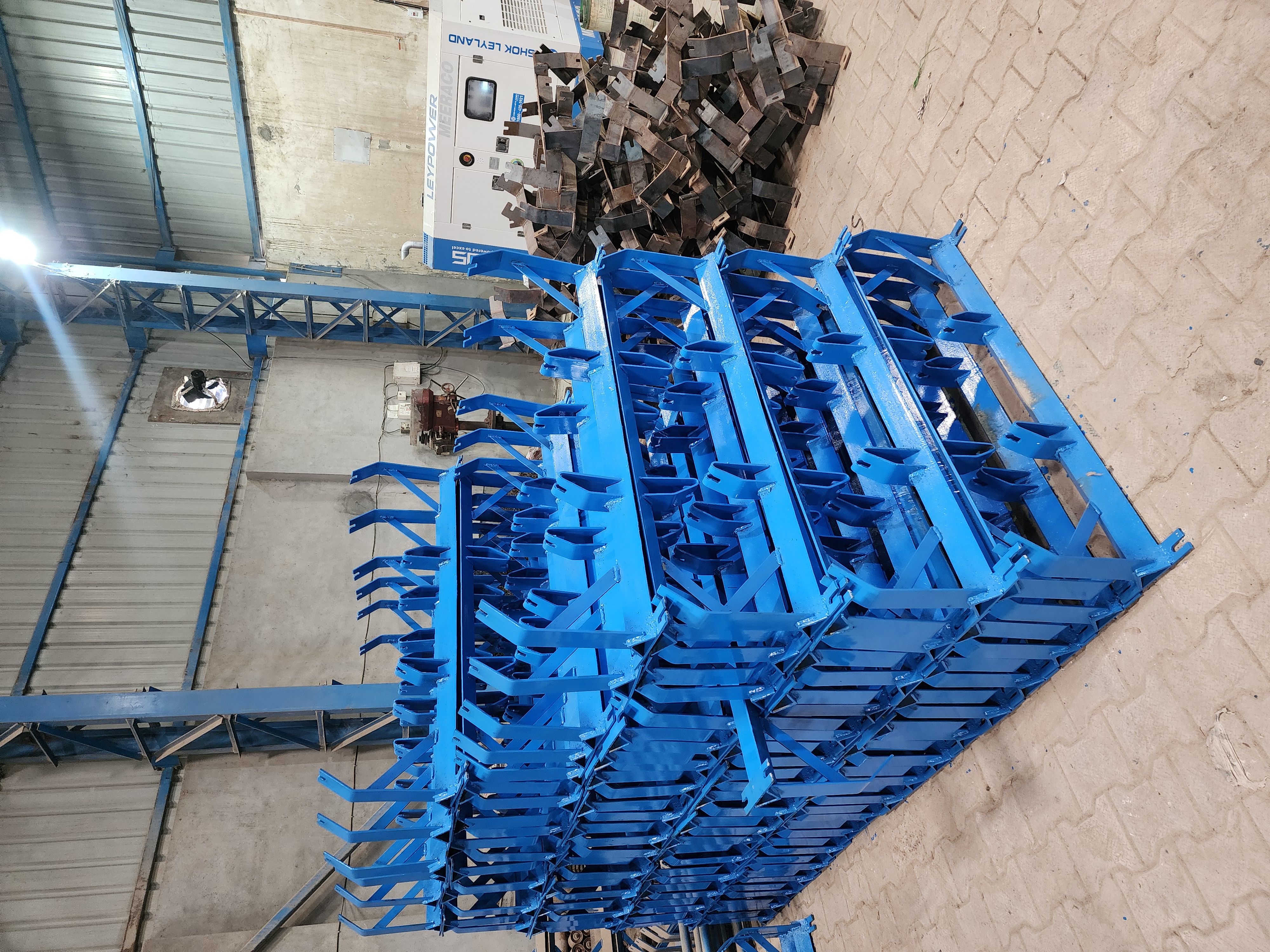

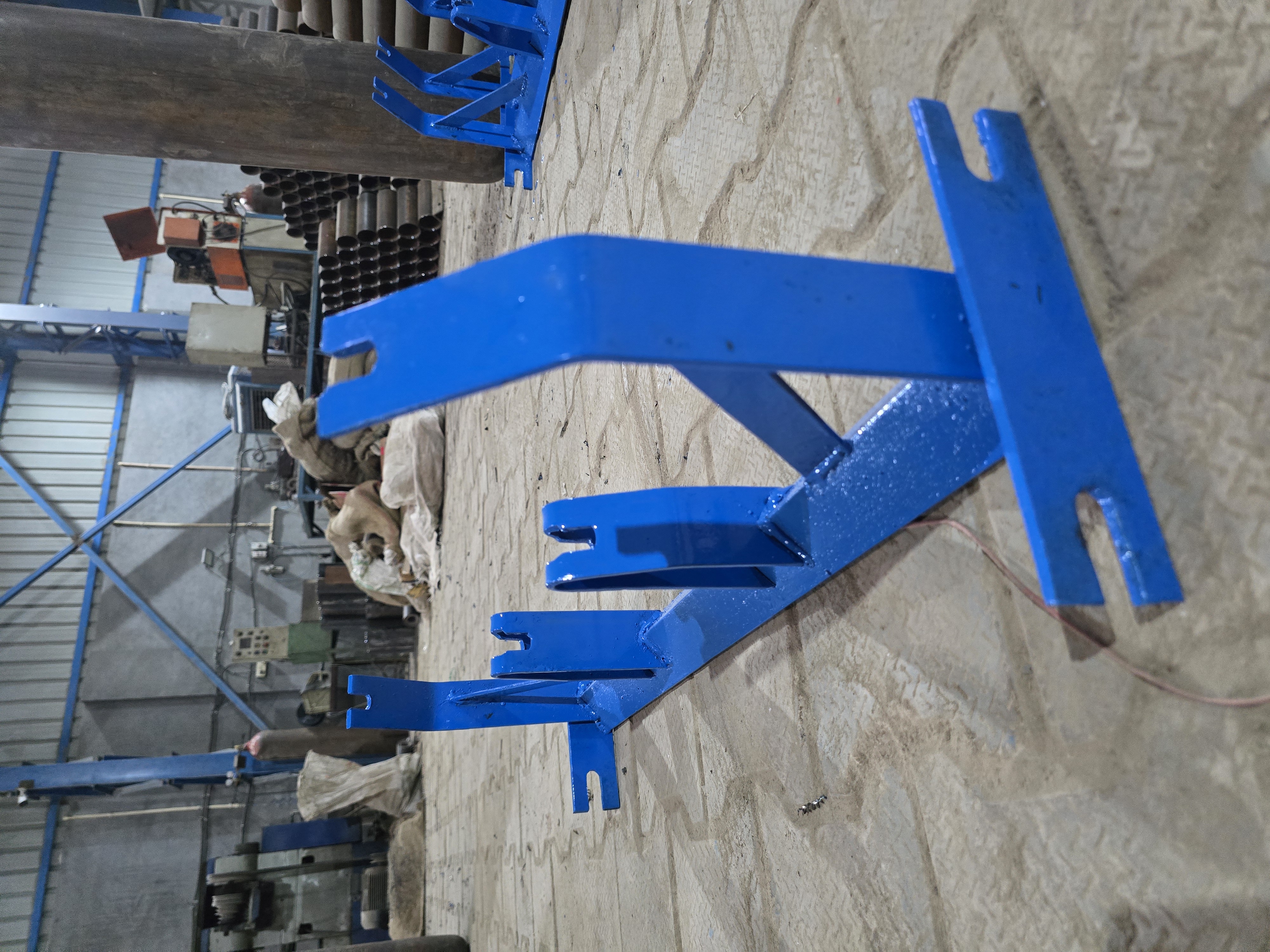

1. Troughing Idler Frames (3-Roller & 5-Roller Frames)

Troughing idler frames are designed to hold 3 or 5 rollers in a configuration that allows the conveyor belt to form a trough shape. This design is ideal for efficient material flow, especially for bulk handling of powders, grains, or other loose materials.

• 3-Roller Frames: Standard design for light to medium-duty conveyors.

• 5-Roller Frames: Provides additional support for heavy-duty or wider belts.

2. Customized Conveyor Frames

Customized frames are designed according to client specifications, including belt width, roller size, and load requirements. These frames are fabricated using high-grade steel and can be tailored for any conveyor system.

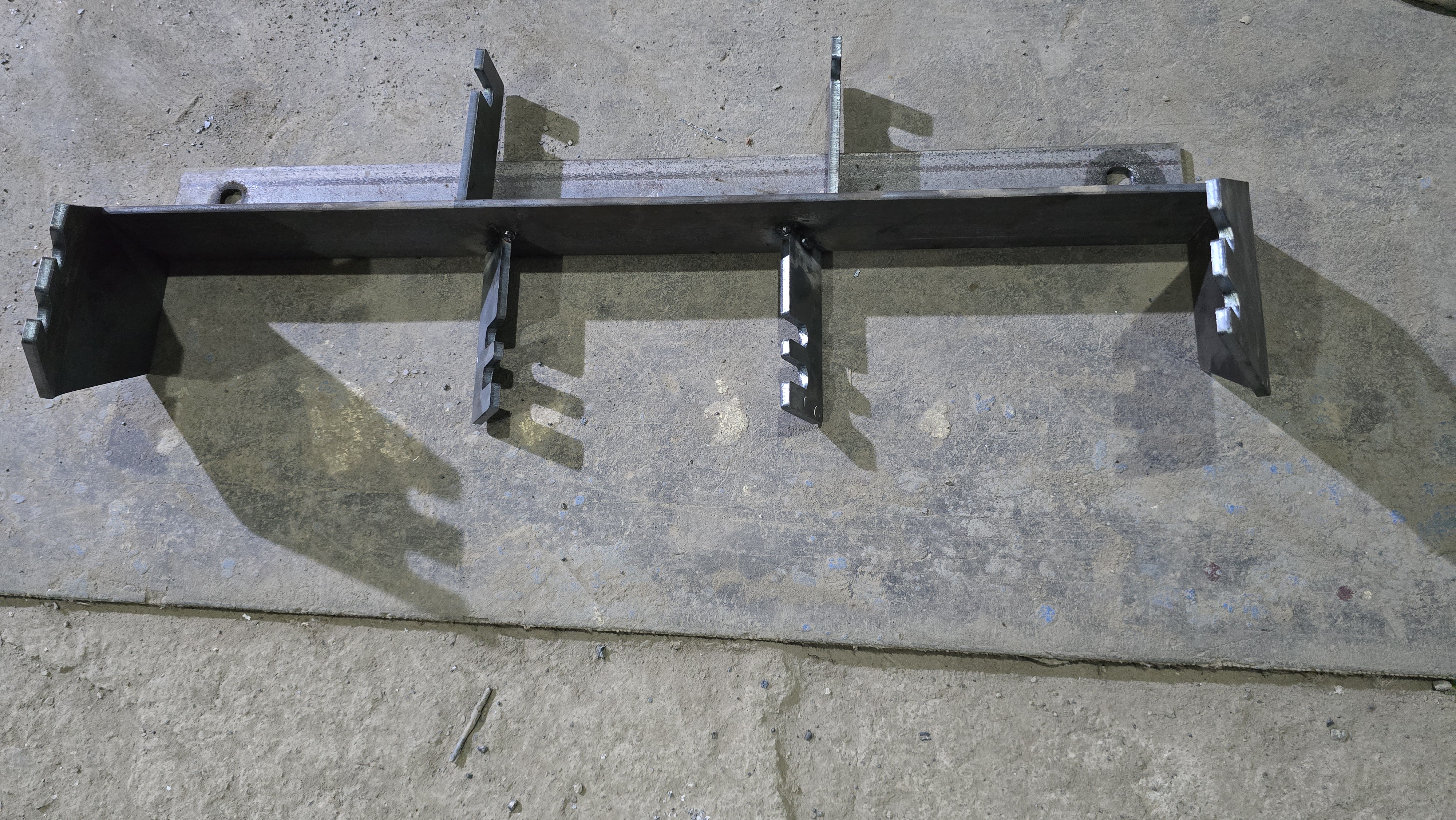

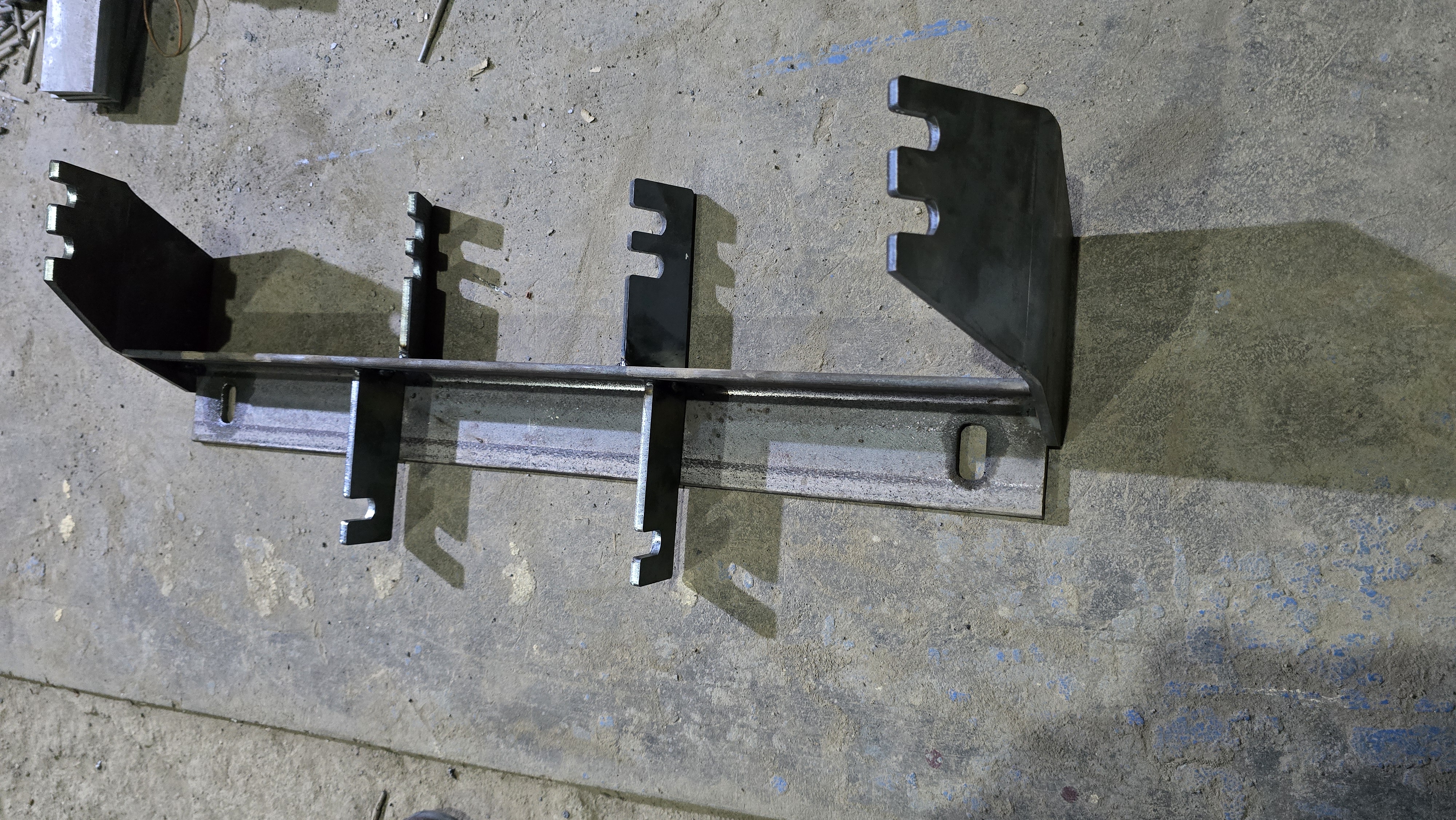

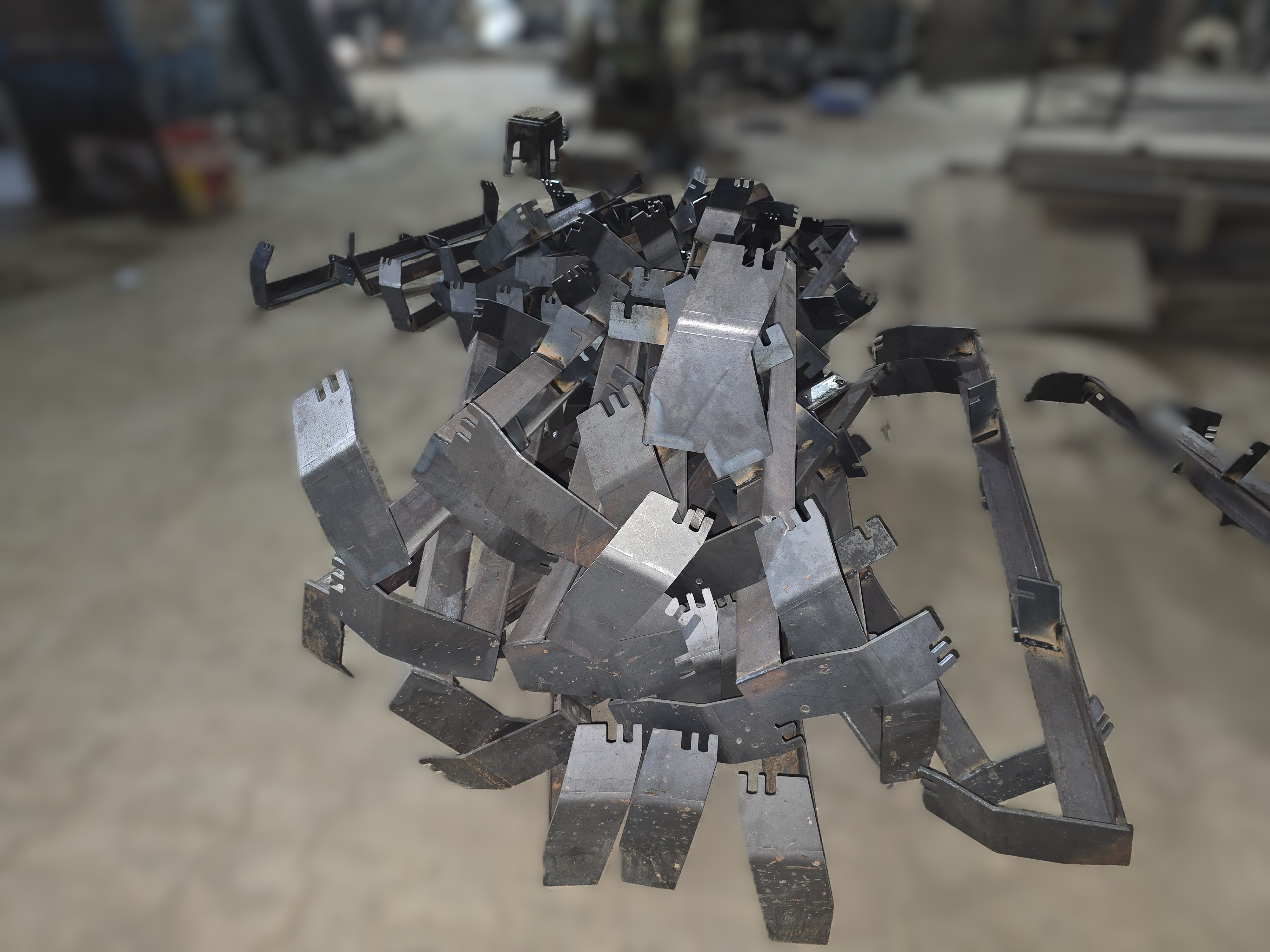

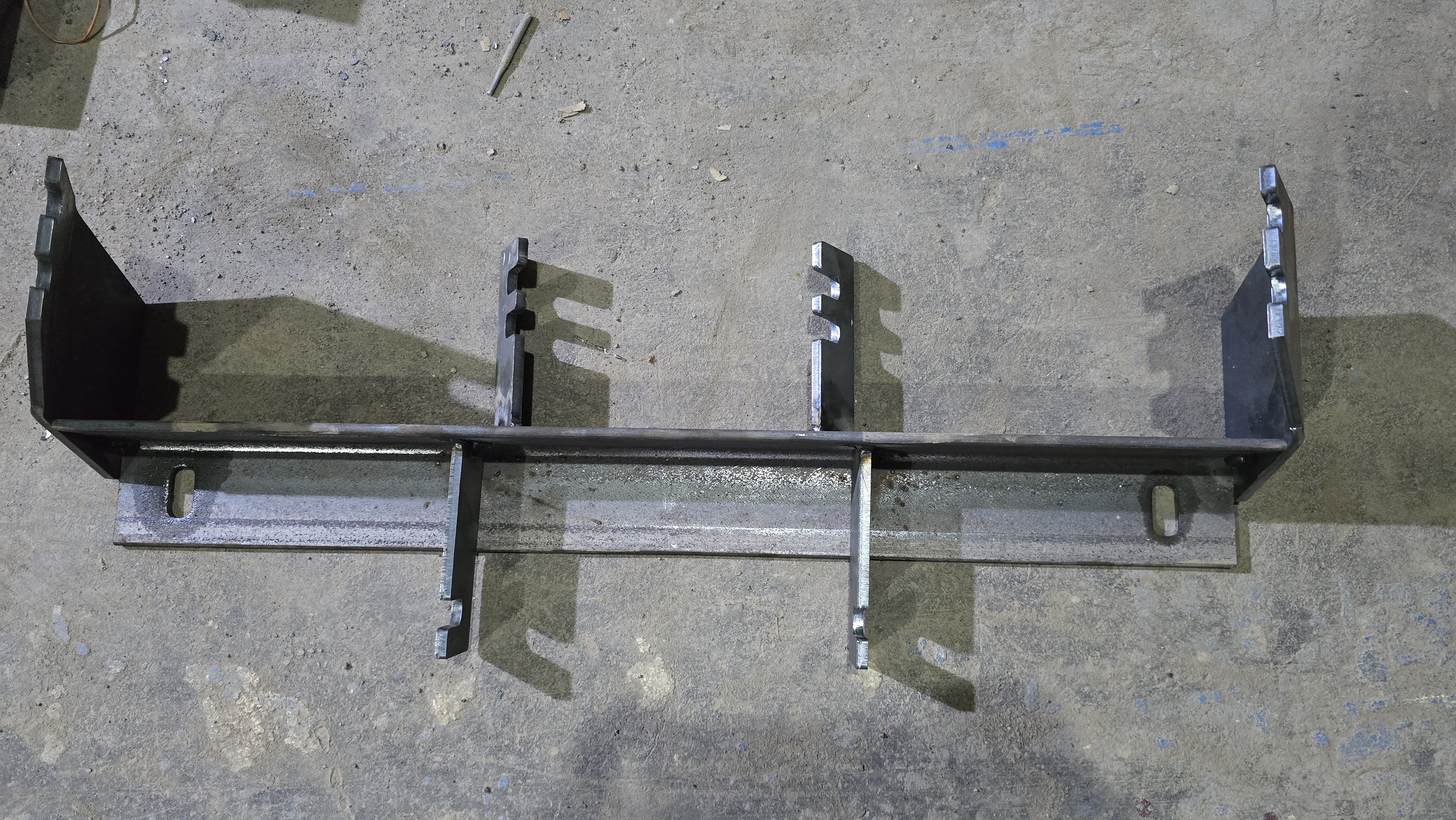

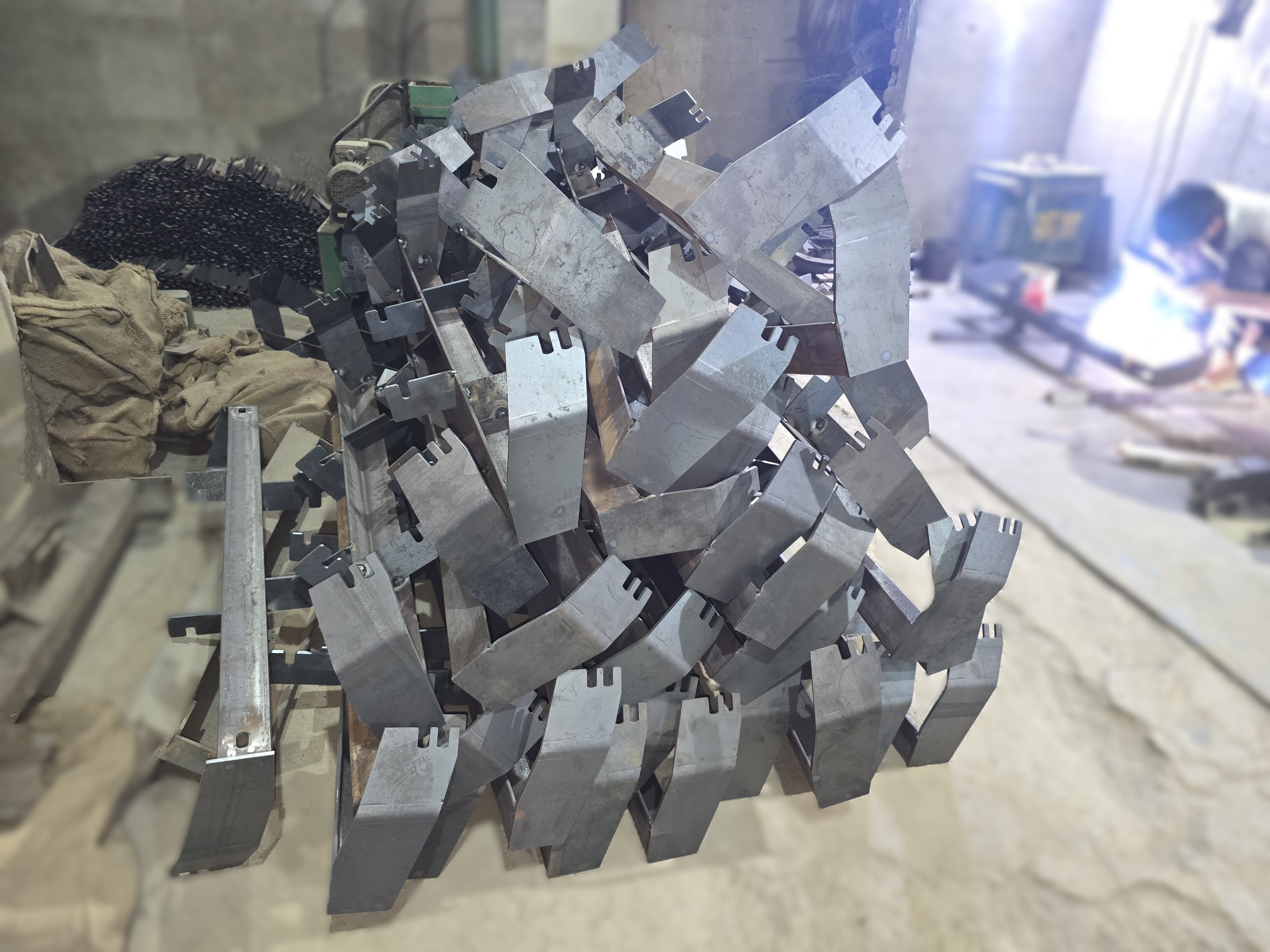

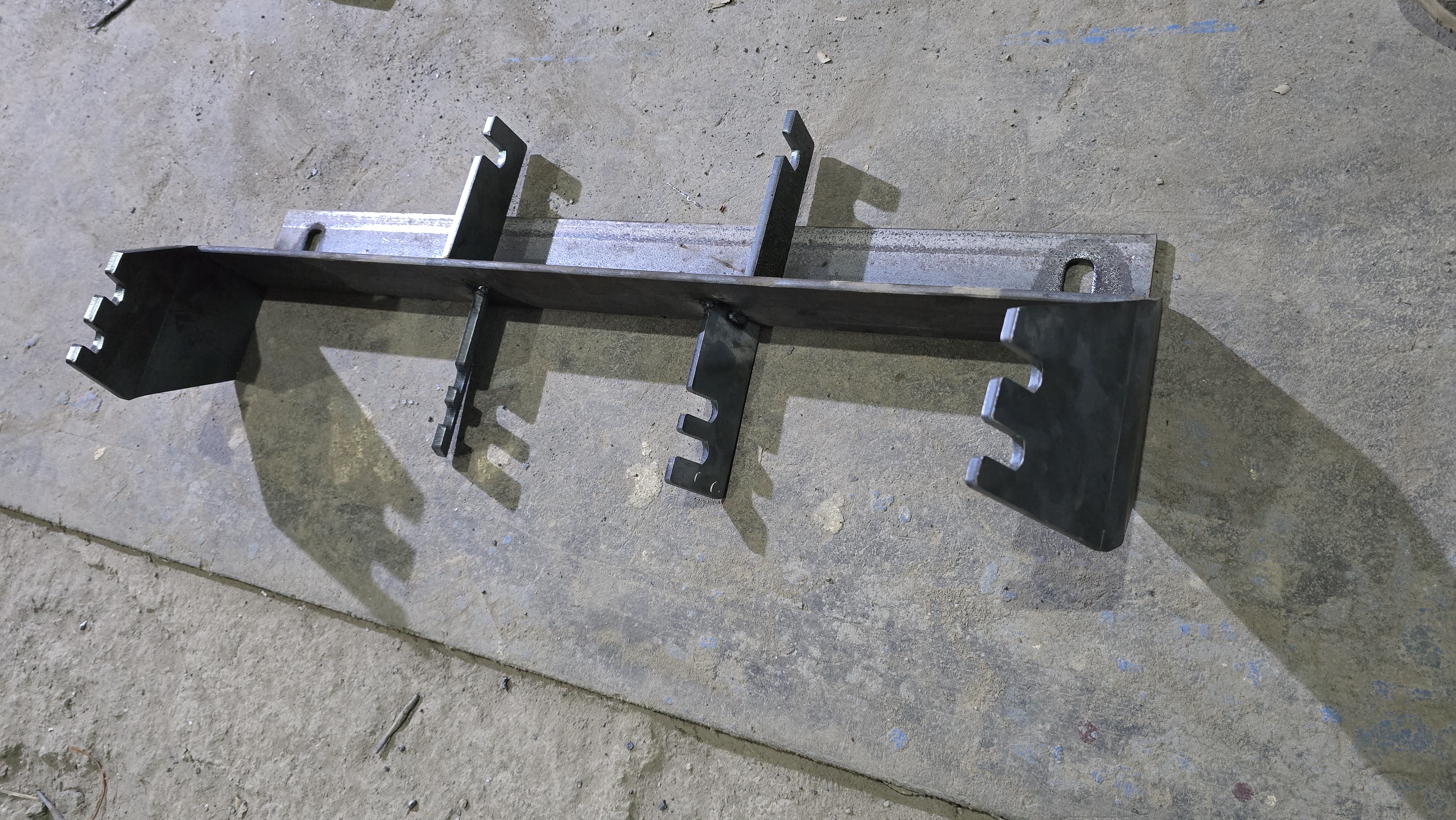

3. Laser Cut Conveyor Brackets

Laser-cut brackets offer precision and durability, ensuring perfect alignment and reduced installation time. They are ideal for modern industrial applications requiring high accuracy and strength.

Applications of Conveyor Frames & Brackets

Conveyor frames and brackets are used across a variety of industries to support material handling operations:

• Manufacturing Plants: Ensure smooth transport of raw materials and finished goods.

• Packaging Industry: Supports conveyor belts carrying cartons, bottles, and packaged goods.

• Logistics & Warehousing: Provides stability for conveyors moving parcels and inventory.

• Mining & Bulk Material Handling: Supports troughing idlers for coal, ores, or cement.

• Food & Pharma Industries: Hygienic and corrosion-resistant frames for safe material handling.

Features & Benefits

Durable Construction

Made from high-quality mild steel (MS) or stainless steel (SS), these frames offer strength, durability, and long service life.

Customizable Designs

Frames and brackets can be customized for belt width, load capacity, and installation requirements.

Precision Laser Cutting

Laser-cut brackets ensure accurate dimensions, proper alignment, and easy installation.

Versatility

Supports 3-roller and 5-roller idlers, making them suitable for lightweight to heavy-duty conveyor systems.

Cost-Effective

Low maintenance and long-lasting performance reduce operational costs.

Why Choose Hindustan Engineering Works?

At Hindustan Engineering Works, we specialize in manufacturing high-quality conveyor frames and brackets tailored to meet specific industrial requirements. Our products are designed to:

• Provide strong and stable support for all types of conveyor rollers.

• Ensure smooth and efficient material flow.

• Offer customization options for belt width, load, and frame design.

• Deliver durable and maintenance-free operation, ensuring long-term cost savings.

We serve clients across India, providing reliable solutions for industries including packaging, logistics, food processing, pharmaceuticals, and heavy industries.

Conclusion

Conveyor frames and brackets are critical components for any conveyor system, ensuring structural integrity, efficiency, and safety. Whether you need troughing idler frames (3-roller or 5-roller), customized frames, or precision laser-cut brackets, Hindustan Engineering Works delivers robust and reliable solutions for all material handling needs.
