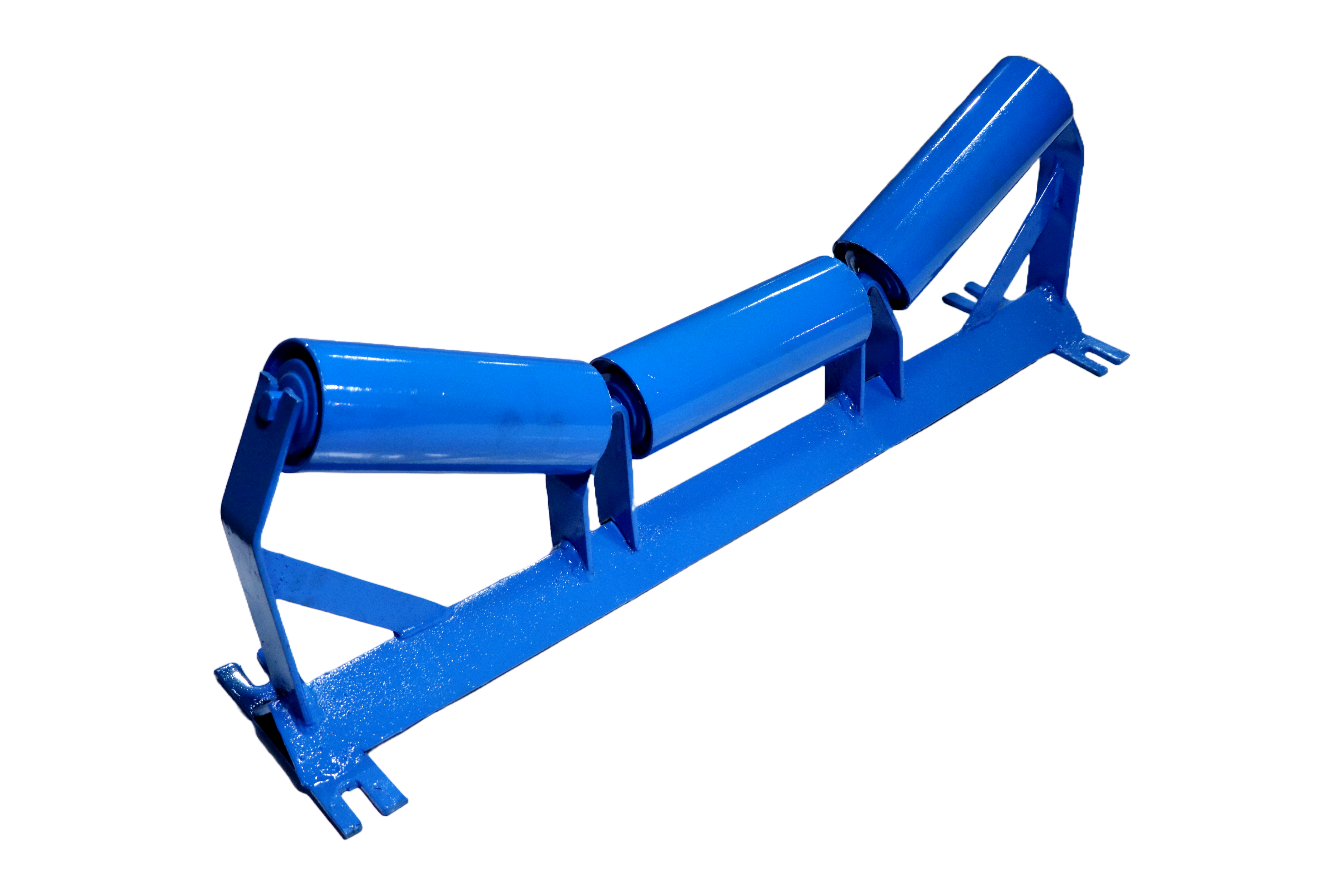

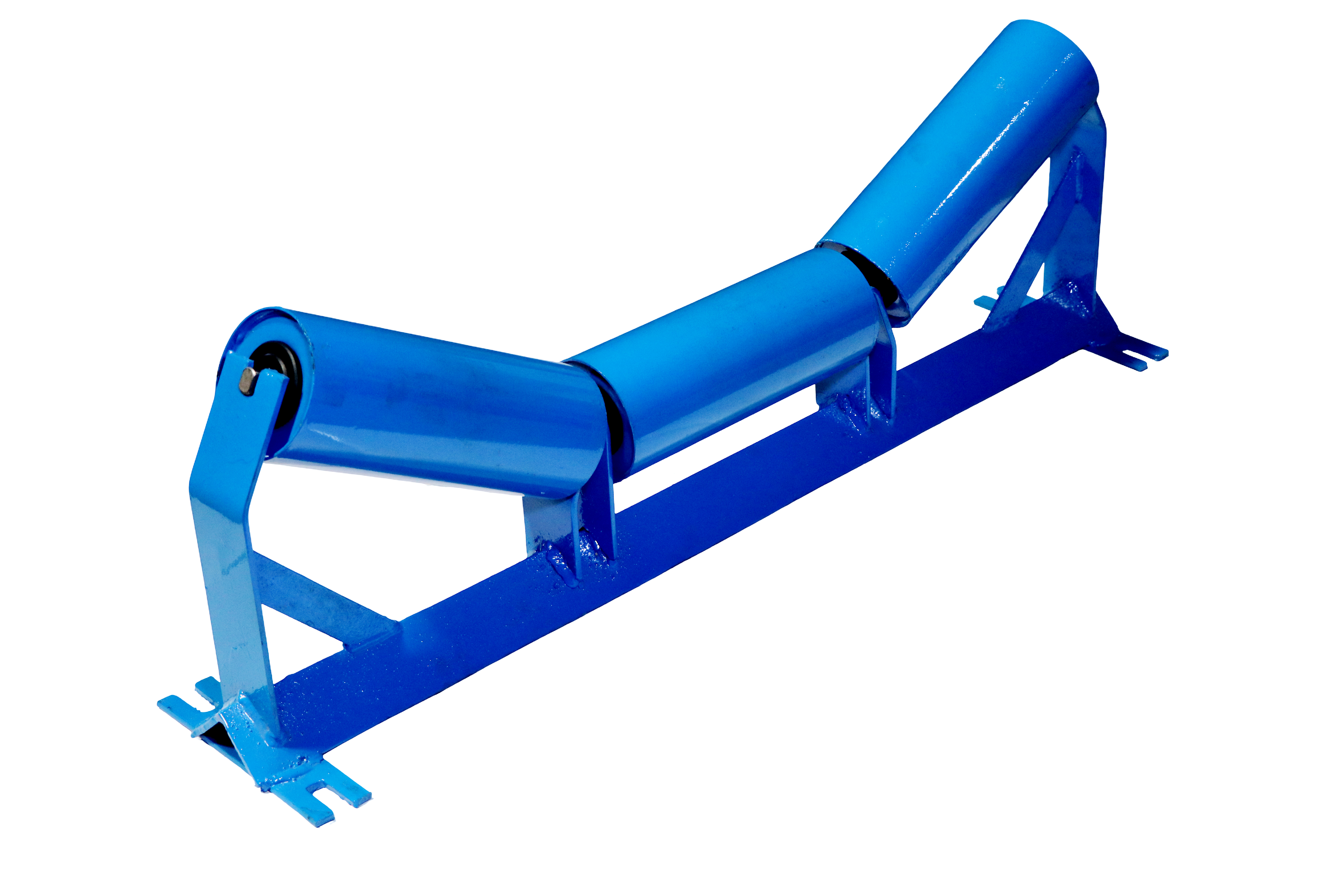

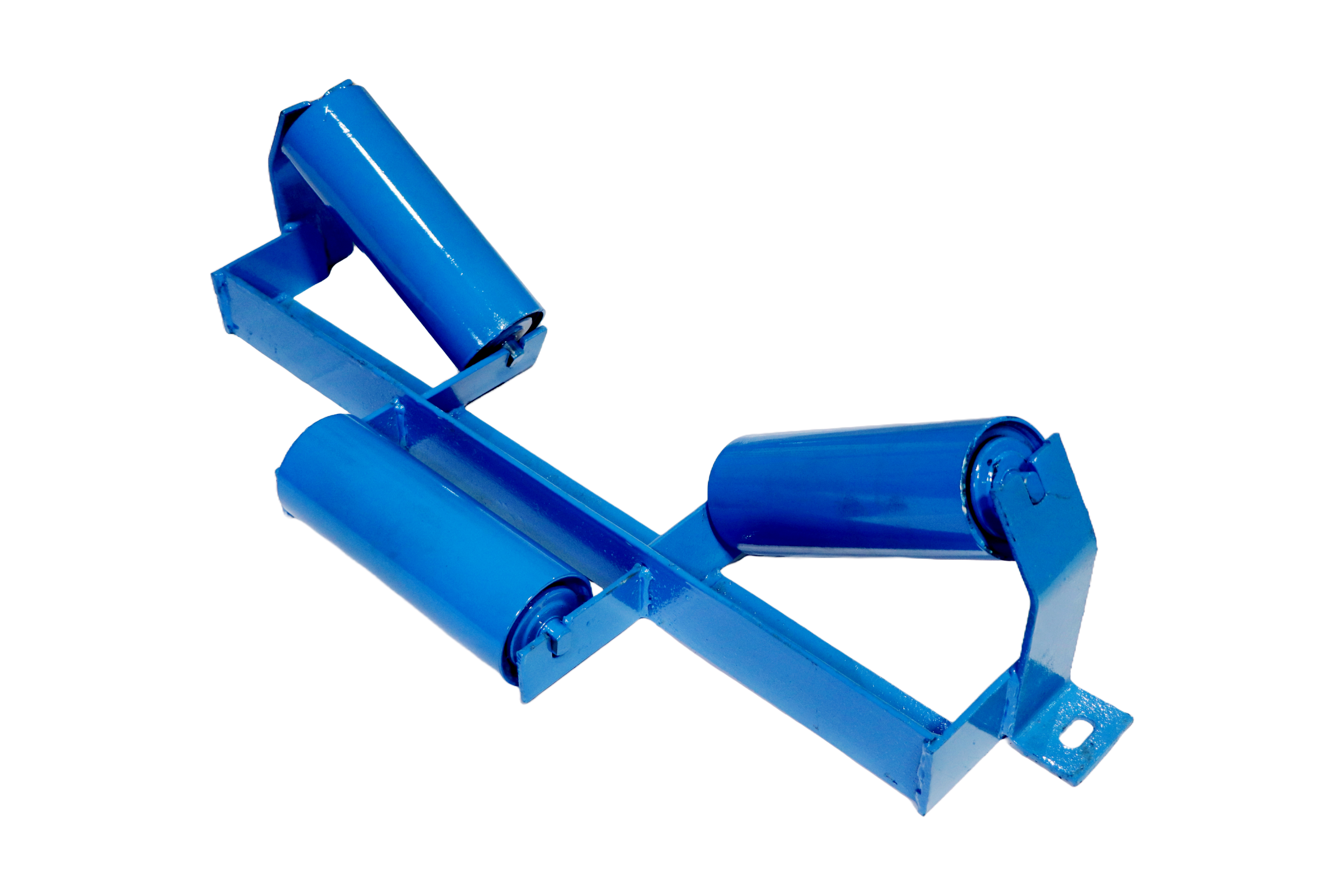

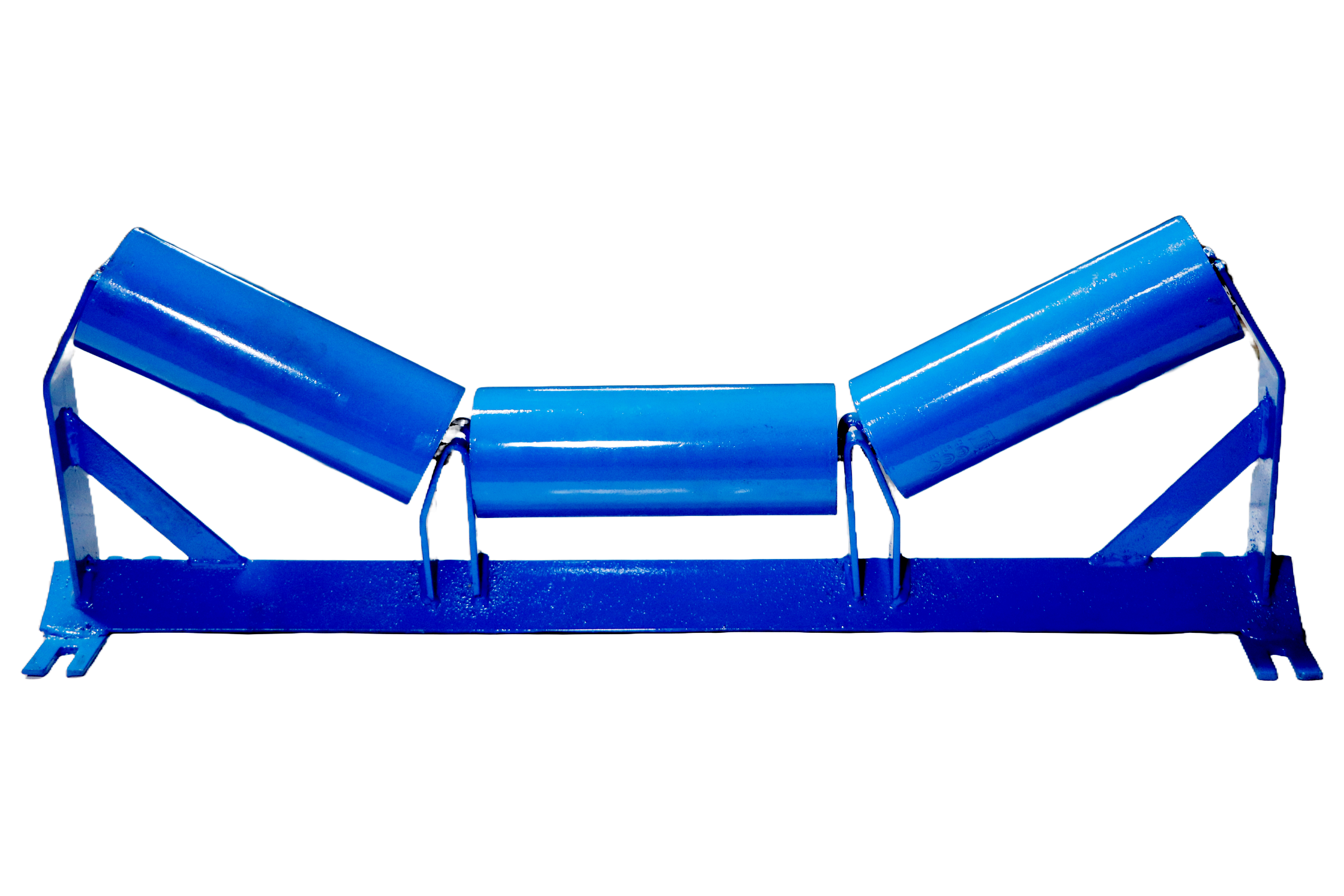

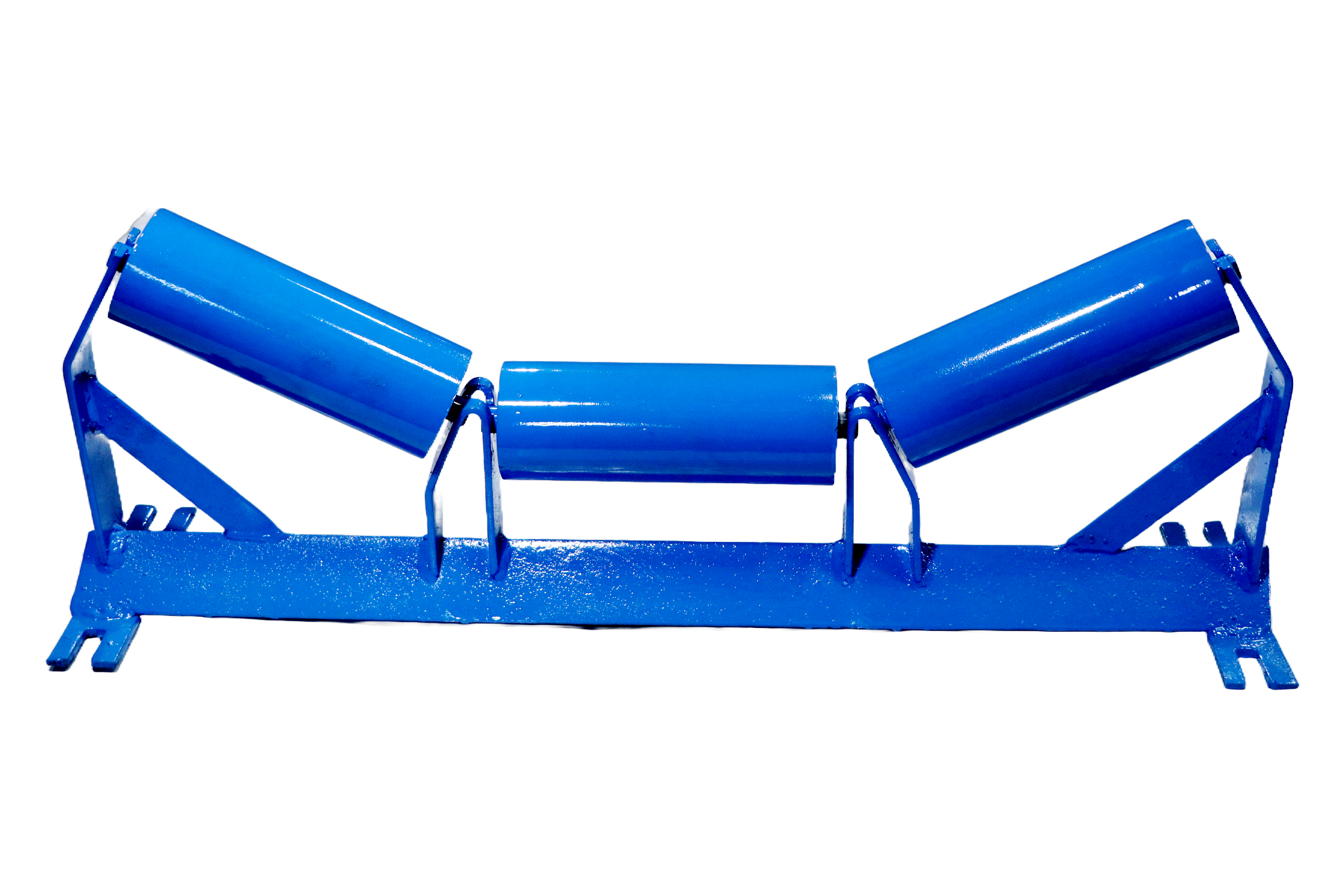

Troughing Idler

🎬 Watch Video 🎬 Watch Video

Product Details:

Belt Width Compatibility	400mm,450mm,500mm,550mm,600mm,650mm, 700mm,750mm,800mm,850mm,900mm,1000mm,1100mm, 1200mm,2000mm belt widths”
Pipe Length	300mm
Shaft Length	330mm
Price	₹1400 – ₹3000 (Depends on size, material & quality required)
Company Name	Hindustan Engineering Works
Roller Diameter	76mm,89mm,114mm
Shaft Diameter	20mm,25mm
Pipe Thickness	3.5mm
Shaft End Type	Groove cut slot
Bearing Type & Size	6204,6304,6205
Sealing Arrangement	Labyrinth type, Dust & Waterproof sealing
Troughing Angle	20°, 25°, 30°, 35° (As per belt design)
Roller Type	Carrying idler
Frame Type	Fixed / Adjustable / Customized design & bracket
Load Capacity	Light duty / Medium duty / Heavy duty (upto 2000 TPH)
Pipe Material	MS (IS 1239), IS 9295
Shaft Material	Bright bar Mild steel / EN8
Surface Finish / Coating	Synthetic enamel paint
Working Temperature Range	20°C to +80°C (Special design on request)
Noise Level	30 dB (Low noise operation)
Minimum Order Quantity (MOQ)	10set
Brand / Manufacturer	Hindustan Engineering Works
HSN Code	84313910
Country of Origin	Made in India
Customization Available	Yes (Size, Material, Coating, Brackets)
Industries Where Used	Mining, Cement Plants, Power Plants, Fertilizer Units, Stone Crushers, Biomass Handling, Coal Handling, Steel Plants,Rice mill,Poultry fram,bio pallets handling
Frem length	20 inches -60 inches
Angle thickness/ size	65x6mm

Product Overview

In Hindustan engineering works, we deal with high-performance Troughing Idlers specialization in several conveyors. Our idlers are geared to hold and direct conveyor belts in a troughed position so that there is no spillage and material is handled without any complications. They have been designed using precision engineering and are extensively applied in the mining sector, cement, steel, power facilities as well as bulk material handling systems.

The important aspects of Our Troughing Idlers.

Durability and high service life.
This is meant to lessen the use of belts and increase their longevity.
Good load carrying capacity.
Low noise and vibration during smooth rotation.
Anticorrosive and low maintenance construction.
Available in 20°, 30°, and 45° troughing angles

Technical Specifications

Roller Diameter: Both standard and customized roller diameters.
Troughing Angle: 20° / 30° / 45°
Material: Mild Steel / Stainless Steel / HDPE (depending on the need)
Shaft Diameter: Customized and standard.
Applications Mining, Quarry, Cement, Thermal Power, Steel, Fertilizer, and others.

What is the reason to choose Hindustan Engineering Works?

Honest manufacturer having years of experience in conveyors.
Strict quality control on the high performance.
Sophisticated idlers according to the needs of clients.
On-time delivery at cost-effective prices.
Dependable supplier to the industries in India.

Troughing Idler Applications.

We are commonly used in:

Conveyors bulk material handling.
Quarry and mining conveyors
Systems of cement and steel industries.
Conveyors of thermal power plants.
Plants of fertilizer and chemicals.

Troughing Idler, Trough Idler Manufacturer India, Conveyor Idler Supplier, industrial Troughing idler, Hindustan engineering works, belt conveyor idler.

Require good Troughing Idlers in your conveyor?
Get in touch with Hindustan Engineering Works and get solutions.
